16 May 2016 / #.net #Vsphere #Visualstudio

sshAutoConnect vCenter plugin

post-thumb

Update 2016/05/16: Thanks to @jmauser a Github release have been created that support vSphere 6.0 Update 2. You can download it here.

Here is our first vCenter plugin ! It’s been a while we wanted to do this, here it is now :p sshAutoConnect is a vCenter (or more likely vSphere Client) plugin.

sshAutoConnect_03

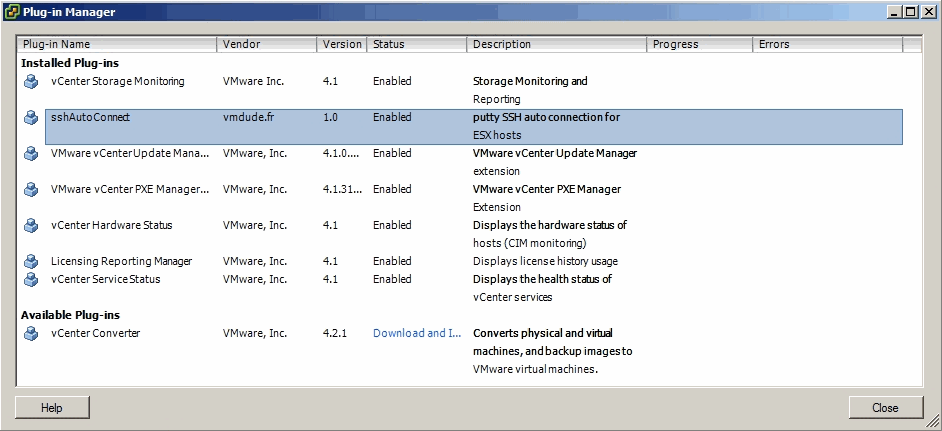

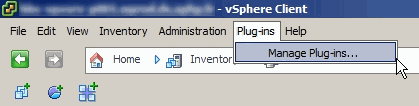

In vSphere Client, you can open plugin window in order to view installed/activated/available plugins through **Plug-ins > Manage Plug-ins!** :

sshAutoConnect_01

sshAutoConnect plugin will allow you to automatically connect with SSH to ESX/i directly in vSphere Client.

It makes able to manage your SSH connection straight in vSphere Client.

So we decide to develop our own plugin to add this feature.

Installation

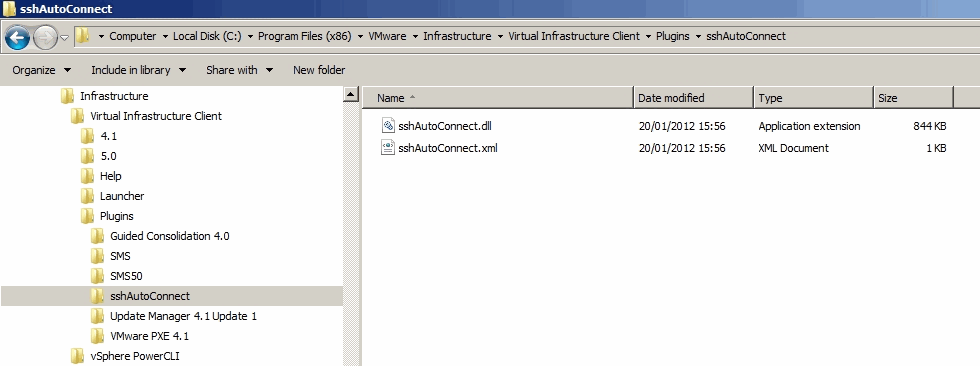

As every vSphere client plugin, you just need to download the archive below and uncompress it in the default vSphere client plugin folder, and restart the client :

C:\Program Files (x86)\VMware\Infrastructure\Virtual Infrastructure Client\Plugins

sshAutoConnect_04

Configuration

The plugin setup is made as easy as possible. The plugin is built to use sshAutoConnect.xml file in the same folder that the .dll library that can be used to specify credentials for automatic connection (optional) :

<?xml version="1.0" encoding="utf-8" ?>
<credentials>
  <default>
    <login>root</login>
    <password>d3d3LnZtZHVkZS5mcg==</password>
  </default>
  <custom_servers>
    <server name="server-esx-01.vmdude.fr">
      <login>root</login>
      <password>d3d3Lmh5cGVydmlzb3IuZnI=</password>
    </server>
    <server name="server-esx-02.vmdude.fr">
      <login>root</login>
      <password>d3d3LnZtd2FyZS5mcg==</password>
    </server>
  </custom_servers>
</credentials>

The xml file have 2 branch : default and custom_servers

The branch default will be used if the server you’re trying to connect doesn’t exist in custom_servers branch. This allows you to make some exceptions for specific servers.

If the file doesn’t exist, the plugin will not provide any credential during SSH connection, therefore you’ll have to authenticate.

Note : The passwords put in configuration file have to be encoded in Base64, you can read our previous post about encode/decode Base64 with Powershell : Base64 managing

Usage

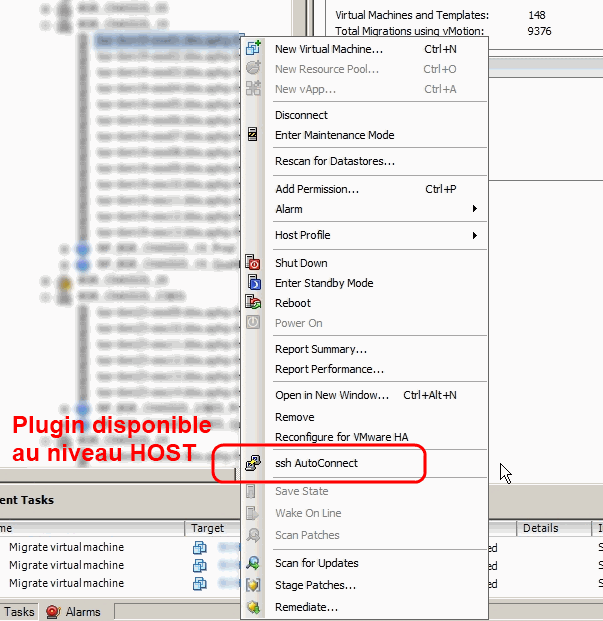

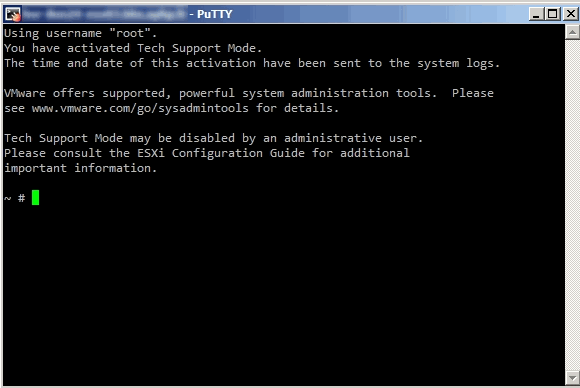

The usage of the plugin is very easy, you just have to right clic on the ESX/i server you wanted to connect and clic on sshAutoConnect :

sshAutoConnect_02

sshAutoConnect_05

Download

  • Here is the .zip archive with the plugin folder containing .dll file and a sample configuration file : sshAutoConnect
  • Here are the Visual Studio 2010 source (can be built as usual with MSBuild/csc/VisualStudio) : sshAutoConnect-sources

Note : a big thanks to R0llB4ck for his help and the trick with Embedded Resource in C#


> Frederic MARTIN
